Q10 Low-Profile Side-Sensing Inductive Proximity Switch
A metal-detection point only 6 mm thick — made for pallet stops, cam timing and the flat spaces under conveyor tracks.
- 6 mm (Q102.5) / 6.5 mm (Q104) body thickness
- Side-sensing face — no bracket gymnastics
- 2.5 mm or 4 mm rated sensing distance
- 10–30 V DC, NPN/PNP, NO/NC, LED indicator
- IP67, −25 to +70 °C, short-circuit protected
Positioning feedback for spaces measured in millimetres
Conveyor lines rarely leave room for sensing hardware where the detection actually needs to happen. Under the pallet track there may be a finger's width of clearance; beside an indexing cam, even less. The Q10 was drawn around that reality: a wafer-thin body that bolts flat to the frame, a sensing face on its flank instead of its nose, and a cable that exits along the mounting surface rather than sticking out of it.
Electrically it is a complete industrial sensor, not a fragile miniature. The 10–30 V DC supply window covers every common control rail, all four output configurations (NPN/PNP × NO/NC) are stocked as separate part numbers, and the output stage carries genuine short-circuit protection with a 180 mA trip — so a miswired test lead costs you a red face, not a sensor. An LED on the body confirms switching during setup, which matters when the sensor disappears under a track after commissioning.
Under-Track Pallet Detection, Side-On
The flat body hides in the clearance under the track and reads each passing pallet plate through its side face — no bracket, no protrusion into the product path.
Model Selection Table

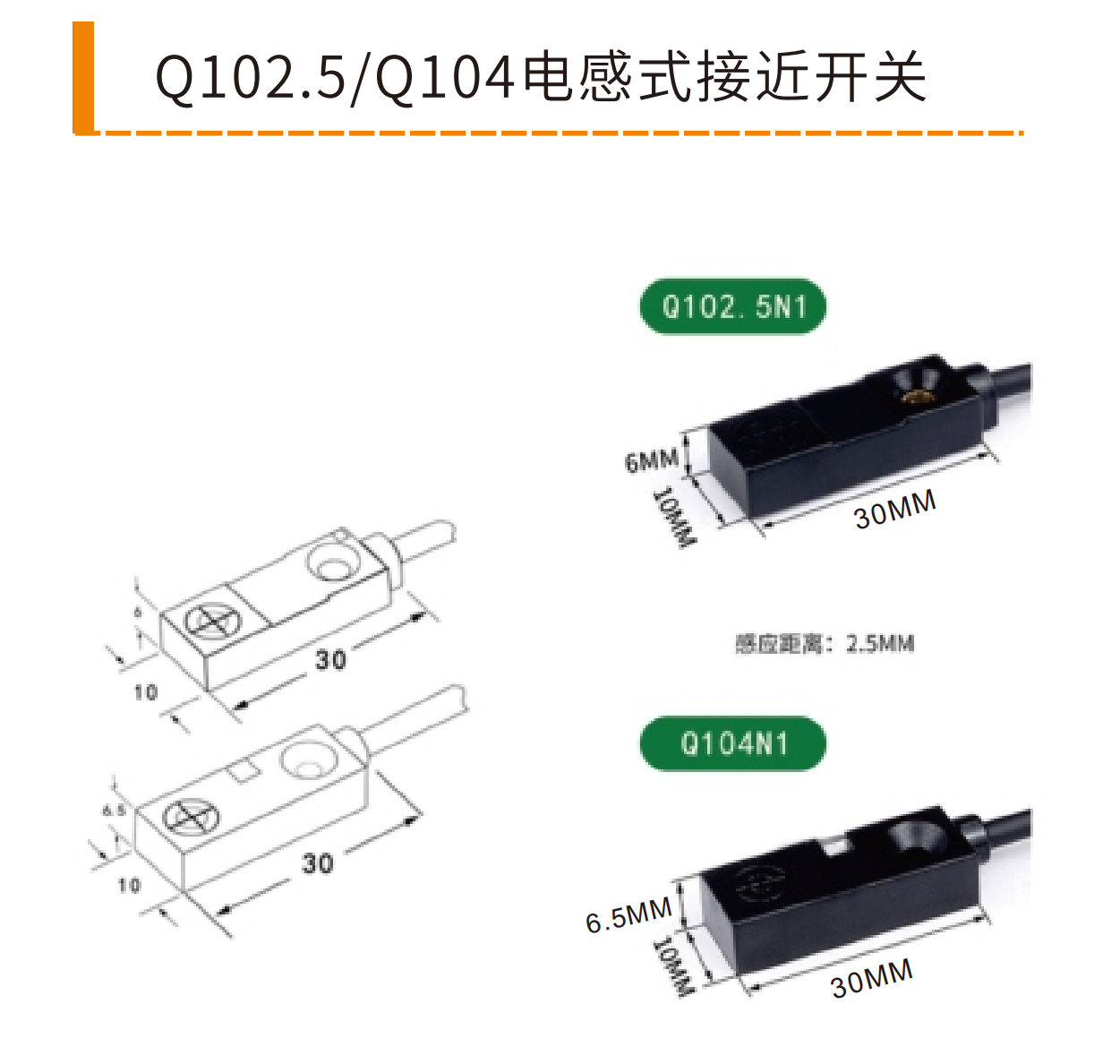

| Model | Sensing distance | Output | Housing | Footprint |
|---|---|---|---|---|
| Q102.5N1 | 2.5 mm | NPN, NO | 6 mm thick, ABS | ≈10 × 30 mm |
| Q102.5P1 | 2.5 mm | PNP, NO | 6 mm thick, ABS | ≈10 × 30 mm |
| Q102.5N2 | 2.5 mm | NPN, NC | 6 mm thick, ABS | ≈10 × 30 mm |
| Q102.5P2 | 2.5 mm | PNP, NC | 6 mm thick, ABS | ≈10 × 30 mm |
| Q104N1 | 4 mm | NPN, NO | 6.5 mm thick, PBT | ≈10 × 30 mm |
| Q104P1 | 4 mm | PNP, NO | 6.5 mm thick, PBT | ≈10 × 30 mm |
| Q104N2 | 4 mm | NPN, NC | 6.5 mm thick, PBT | ≈10 × 30 mm |
| Q104P2 | 4 mm | PNP, NC | 6.5 mm thick, PBT | ≈10 × 30 mm |
Naming rule: Q10 + sensing distance (2.5/4) + N/P (NPN/PNP) + 1/2 (NO/NC). Example: Q104P2 = 4 mm, PNP, normally closed.
Technical Specifications
| Sensing method | Inductive, side (lateral) face |
|---|---|
| Sensing distance | 2.5 mm (Q102.5) / 4 mm (Q104) |
| Supply voltage | 10–30 V DC, 3-wire (BN +, BK signal, BU −) |
| No-load current | < 10 mA |
| Max load current | 150 mA (overload trip 180 mA, short-circuit protected) |
| Output options | NPN / PNP × NO / NC (4 configurations) |
| Housing | ABS (Q102.5) / PBT (Q104), ≈10 × 27–30 mm footprint |
| Protection rating | IP67 |
| Operating temperature | −25 °C to +70 °C |
| Indicator | LED switching-state indicator |
| Switching frequency / cable length | Contact factory (not published for this series) |
Typical Applications
Pallet & Fixture Positioning
Confirms a metal pallet has reached its stop under the conveyor track before the next station cycles.
Cam & Shaft Timing
Reads cam lobes or shaft flats side-on for cycle timing on rotating machinery.
Indexing Table Stations
Detects the metal dog at each dial position to verify the table stopped on station.
Flat-Bracket Retrofits
Adds a detection point to existing machines with two screws and 6 mm of clearance — no machining.
