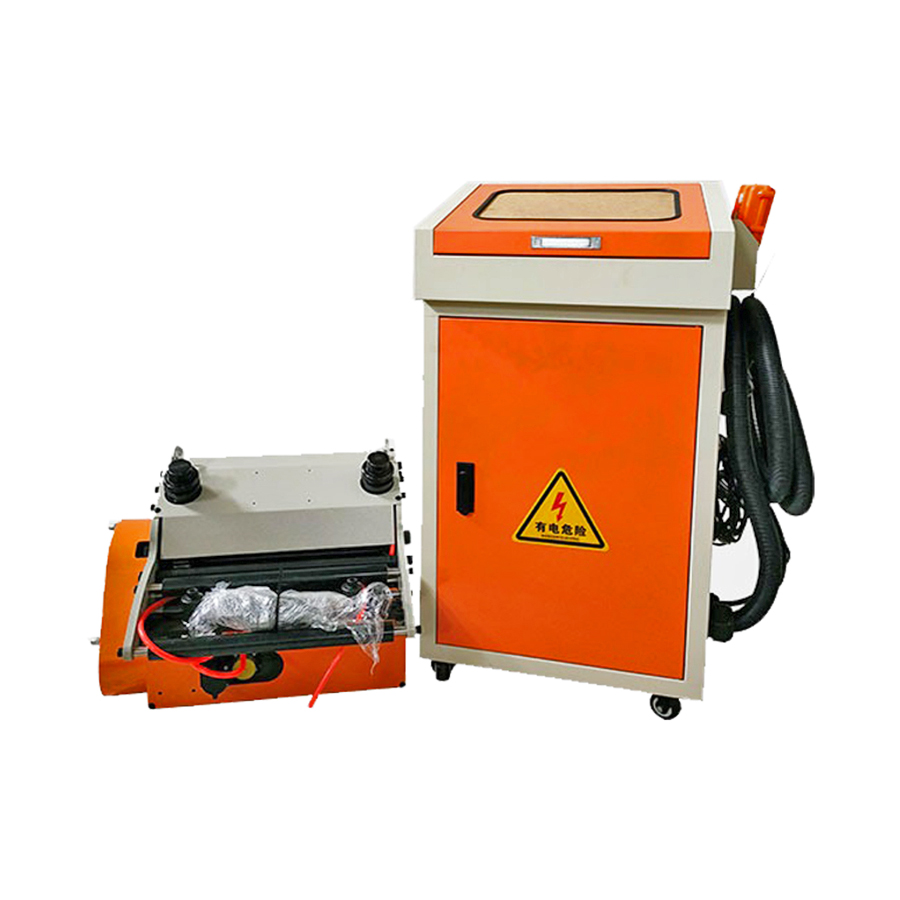

Precision guarantee: Closed-loop control + electronic cam synchronization + hollow roller with low inertia, achieving an overall precision of ±0.03 mm.
High-efficiency production: Supports continuous feeding of long materials (up to 9999.99 mm), with a speed of 20 m/min, which is 50% more efficient than mechanical feeders.
Flexible adaptation: Capable of processing steel, aluminum, and copper coils with a thickness range of 0.0 – 3.5 mm, and compatible with complex processes of multiple engineering molds.
Application scenarios: It is applicable to industries such as automotive parts, precision electronic components, and metal stamping, especially suitable for:
High-speed continuous stamping (>200 times per minute)
Multi-process forming (such as combined processes of stretching, punching and trimming)
Precision processing of ultra-thin materials (<0.5 mm) or high-strength plates
Accuracy up to ±0.03 mm (requires mold positioning pins for cooperation)
Durable and Stable
Integrated molded body, long lifespan under continuous load
Time-Saving and Effortless
Dual control modes, flexible and efficient operation
Easy Operation
One-click parameter setting via human-machine interface
Ten Core Technologies

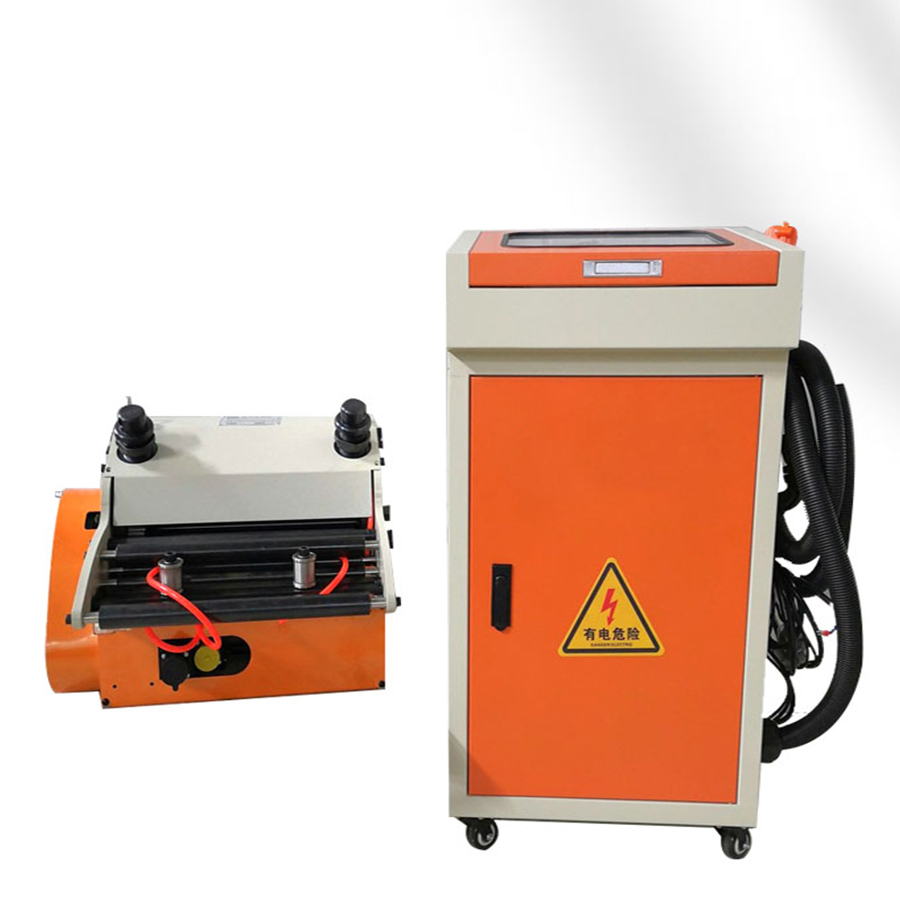

NC Servo Control System - Stable performance, suitable for high-precision feeding of materials with different thicknesses (0.0-3.5 mm) and lengths. - Utilizes advanced servo motors for precise control, ensuring consistent feeding accuracy even under varying load conditions. - Integrates closed-loop feedback mechanisms to monitor and adjust feeding in real-time, minimizing errors and enhancing reliability.
Simple and Fast Operation - Reduces working hours, improves productivity, and supports high-speed long-distance feeding. - Features intuitive controls that allow operators to quickly set up and switch between different feeding parameters without extensive training. - Designed for seamless integration with existing press machines, enabling rapid startup and minimal downtime during production changes.

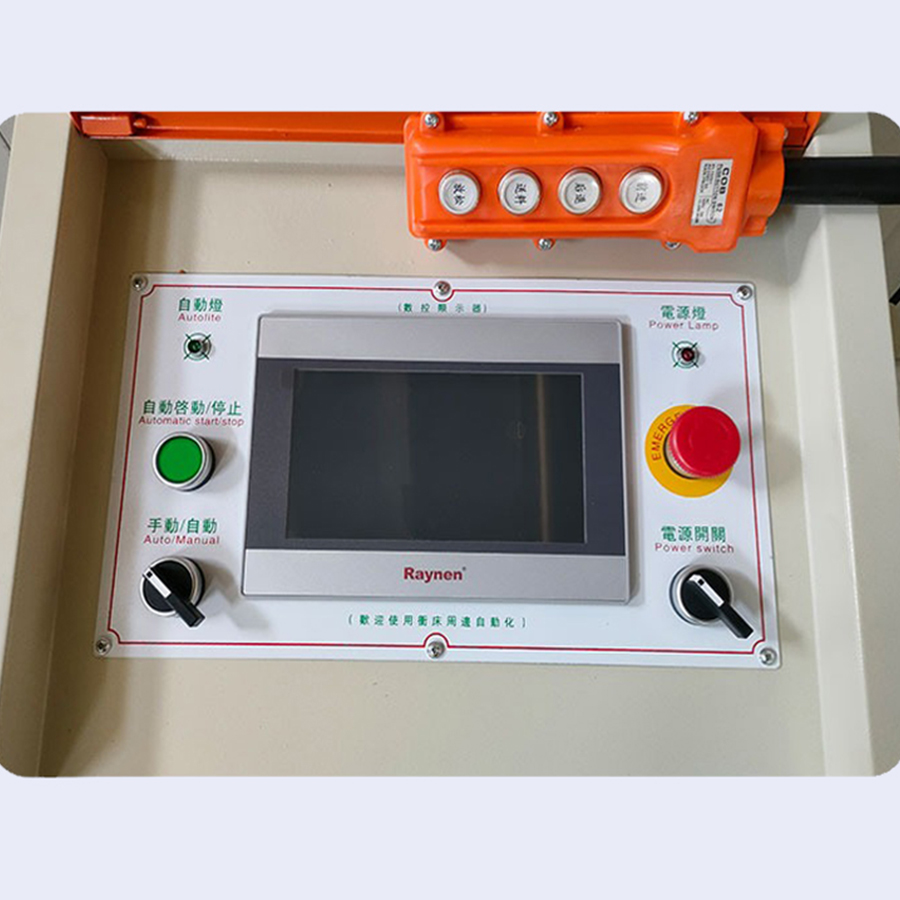

Human-Machine Operation Interface - Freely set feeding length (0.1-9999.99 mm), speed, and other parameters. - Equipped with a user-friendly touchscreen interface that displays real-time operational data, error diagnostics, and customizable settings. - Supports multiple languages and visual aids for global usability, ensuring operators can efficiently manage complex feeding tasks.
Multi-Stage Mold Compatibility - Coordinates with molds to achieve multi-stage feeding. - Allows for programmable multi-step feeding sequences that align perfectly with progressive die operations, enhancing versatility in manufacturing. - Compatible with a wide range of mold designs, including those requiring precise timing and positioning for intricate stamping processes.

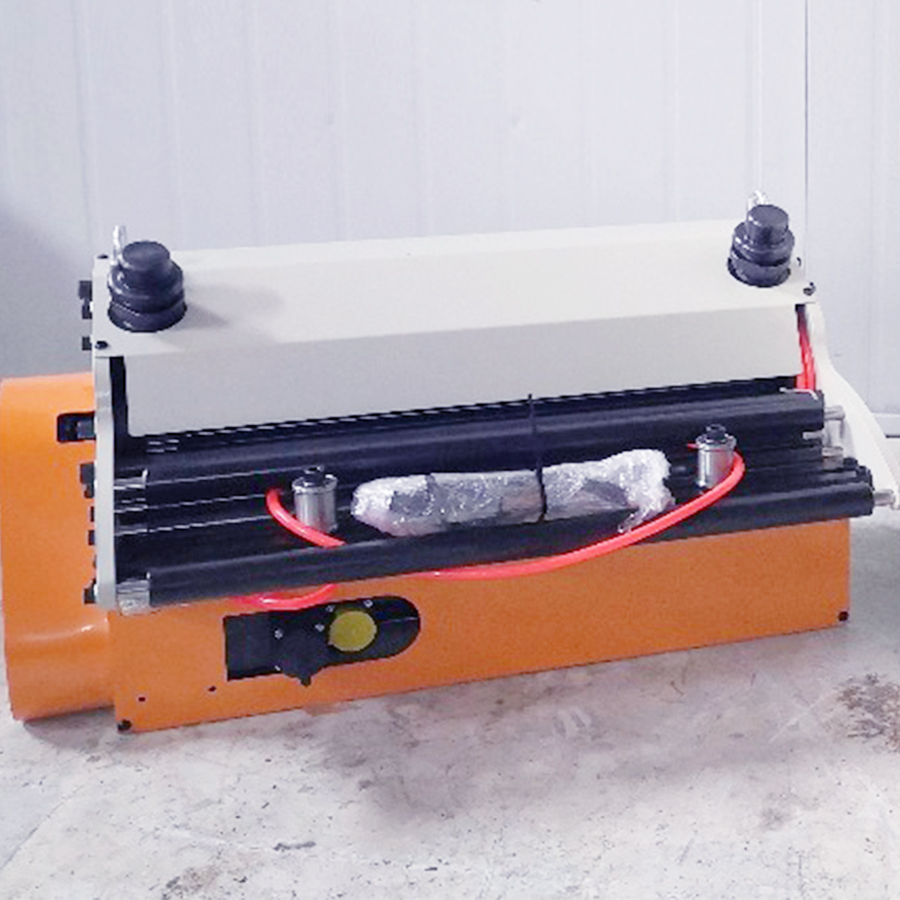

Imported Roller Material - Bearing steel rollers, heat-treated and quenched (HRC60-62), then chrome-plated and ground for superior wear resistance. - Sourced from high-quality international suppliers to ensure durability and consistent performance over extended periods of use. - The advanced surface treatment provides excellent resistance to abrasion, corrosion, and material slippage, maintaining feeding accuracy.
Hollow Roller Design - Lightweight with low inertia, ensuring immediate stopping for precision. - Reduces overall machine weight while maintaining structural integrity, leading to faster response times and lower energy consumption. - Optimizes dynamic performance by minimizing rotational inertia, which is crucial for high-speed operations and quick stops without overshooting.

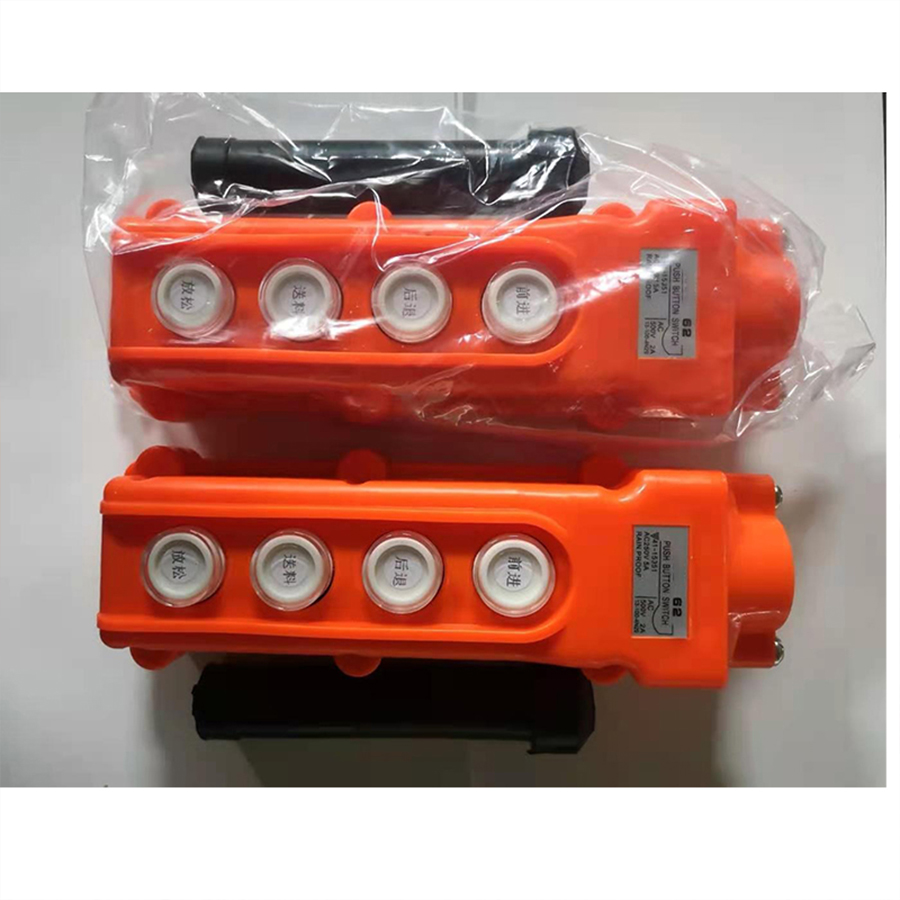

Dual Control Modes - Button + hand pulse dual operation, with multifunctional flexible switching. - Offers both automated button controls for standard operations and manual pulse handles for fine adjustments during setup or troubleshooting. - Enables seamless switching between modes, providing flexibility for different production scenarios and operator preferences.
Optional Relaxation Modes - Select mechanical or pneumatic relaxation based on press characteristics. - Mechanical relaxation provides robust, maintenance-free operation for heavy-duty applications, while pneumatic offers adjustable pressure for delicate materials. - Customizable to match specific press machine requirements, ensuring optimal material handling and preventing damage during feeding cycles.
High Precision Assurance - Feeding accuracy of ±0.03 mm when the mold has positioning pins. - Incorporates precision sensors and alignment mechanisms that work in tandem with mold pins to achieve unparalleled accuracy in material positioning. - Regularly calibrated components ensure long-term precision, making it ideal for industries requiring tight tolerances like electronics and automotive.
Reinforced Body Structure - Integrated precision molding, strong rigidity, easy maintenance, and long lifespan. - Constructed from high-strength alloys with integrated casting techniques to eliminate weak points and enhance overall durability. - Modular design facilitates easy access to internal components for maintenance, reducing repair times and extending the operational life of the feeder.
Model Parameter Comparison Table
Type
NCF-200
NCF-300
NCF-400
NCF-500
NCF-600
NCF-800
NCF-1000
NCF-1300
Maximum Width (mm)
200
300
400
500
600
800
1000
1300
Material Thickness (mm)
0.2-2.5
0.2-2.5
0.2-2.5
0.2-2.5
0.2-2.5
0.2-2.5
0.2-2.5
0.2-2.5
Material Width (mm)
200
300
400
500
600
800
1000
1300
Feeding Length (mm)
0-9999.99
0-9999.99
0-9999.99
0-9999.99
0-9999.99
0-9999.99
0-9999.99
0-9999.99
Feeding Speed (times/min)
100-150
100-150
100-150
100-150
100-150
100-150
100-150
100-150
Power Supply
220V single-phase / 380V three-phase, standard three-phase 380V
Specification
Customizable as needed, thickness can be customized up to 6 mm, roller base machine, thick plate feeder, please contact customer service for details
Shipping Details
1 machine, 1 control box, 1 set of installation accessories
Note: The entire series supports customization, and the specific thickness range can be adjusted.
Core Process Details
Roller Process
45# steel material → High-frequency heat treatment → Hard chrome plating → Precision outer circle grinding → Ensures high hardness and surface brightness.
The process begins with high-quality 45# steel, selected for its excellent mechanical properties and machinability.
High-frequency heat treatment is applied to enhance the material's hardness and strength, preparing it for demanding industrial use.
Hard chrome plating adds a protective layer that improves corrosion resistance and reduces friction during material feeding.
Precision outer circle grinding achieves a smooth, mirror-like finish, ensuring minimal wear and optimal contact with various materials.
This comprehensive process results in rollers that maintain high hardness (typically HRC58-62) and superior surface quality, extending service life and performance.
Transmission Gear
20CrMnTi gear steel → Carburizing and quenching → Super-hard and wear-resistant surface, with 4-gear precise meshing transmission to ensure error-free feeding.
Starts with 20CrMnTi alloy steel, known for its high strength, toughness, and suitability for gear applications in heavy machinery.
Carburizing process infuses carbon into the surface layer, followed by quenching to create a hard outer shell while keeping the core ductile.
The resulting super-hard surface (HRC58-62) provides exceptional wear resistance, capable of withstanding continuous high-load operations.
Features a 4-gear precise meshing system designed for smooth power transmission, eliminating backlash and ensuring zero-error feeding accuracy.
This advanced gear technology guarantees reliable, maintenance-free operation in high-precision stamping environments, reducing downtime and costs.
Frequently Asked Questions
What is the difference between an NC servo feeder and an air feeder?
An NC servo feeder uses a closed-loop servo motor with electronic cam synchronization to pull coil stock, giving programmable feed length (0–9999.99 mm) and ±0.03 mm repeatability. An air (pneumatic) feeder relies on a fixed gripper stroke and is cheaper but far less precise. For high-speed stamping and progressive-die work, the NCF servo roller feeder is the more accurate, flexible choice.
What feeding accuracy and feed length does the NCF servo roller feeder achieve?
The NCF feeder achieves an overall precision of ±0.03 mm when the mold uses positioning pins, thanks to closed-loop control plus a hollow, low-inertia roller for immediate stopping. Feed length is freely programmable from 0.1 up to 9999.99 mm through the human-machine interface, and feeding speed reaches 100–150 times per minute for high-throughput stamping press automation.
What coil materials and thicknesses can the NCF feeder handle?
Standard models handle steel, aluminum and copper coils from about 0.2 to 2.5 mm thick (the series spans 0.0–3.5 mm), in widths from 200 mm up to 1300 mm across the NCF-200 to NCF-1300 range. Thicker plate up to 6 mm and roller base-machine or thick-plate feeders can be customized — contact customer service to match your coil line.
What power supply and relaxation options does it need?
The feeder runs on 220 V single-phase or 380 V three-phase power, with standard three-phase 380 V configuration. It offers optional mechanical or pneumatic relaxation, chosen to match your press characteristics: mechanical relaxation is robust and maintenance-free for heavy-duty work, while pneumatic relaxation gives adjustable pressure for delicate or ultra-thin materials.
Where does the NCF servo roller feeder fit in a 3-in-1 coil line?
It is the precision feeding stage for punch press automation, typically following a decoiler and straightener in a coil-handling line. It suits automotive parts, precision electronic components and metal stamping, especially high-speed continuous stamping over 200 strokes per minute, multi-process forming, and precision processing of ultra-thin (<0.5 mm) or high-strength plates.
