JT14 Industrial Safety Carpet Sensor

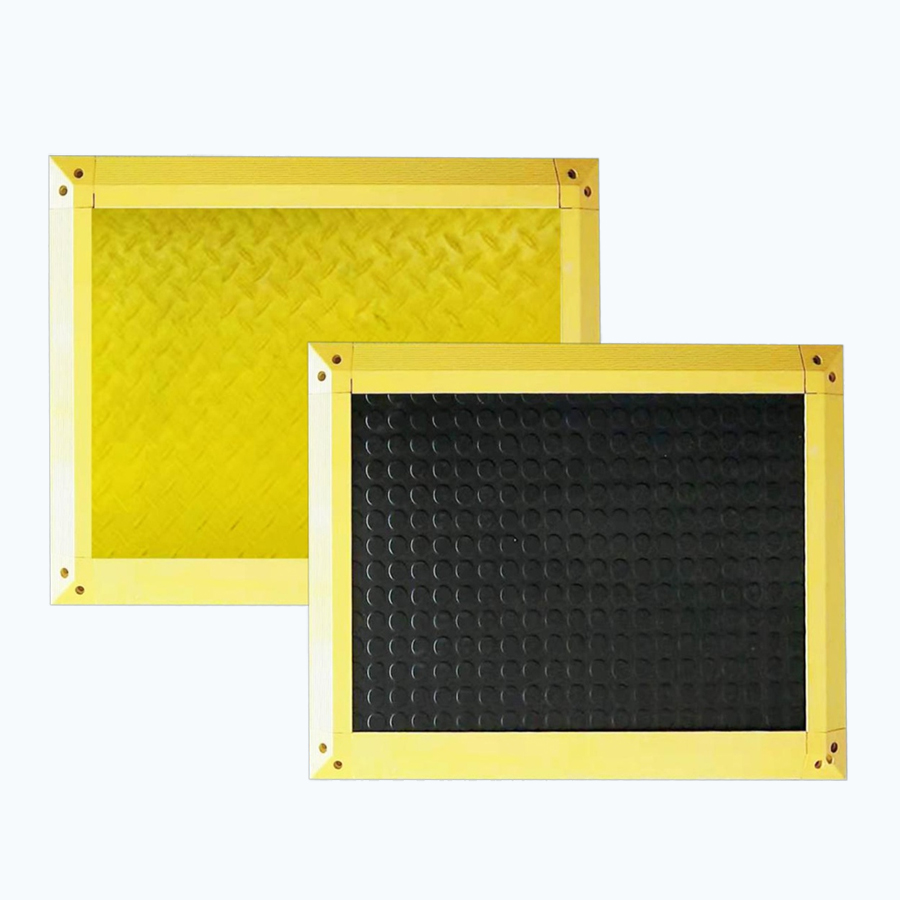

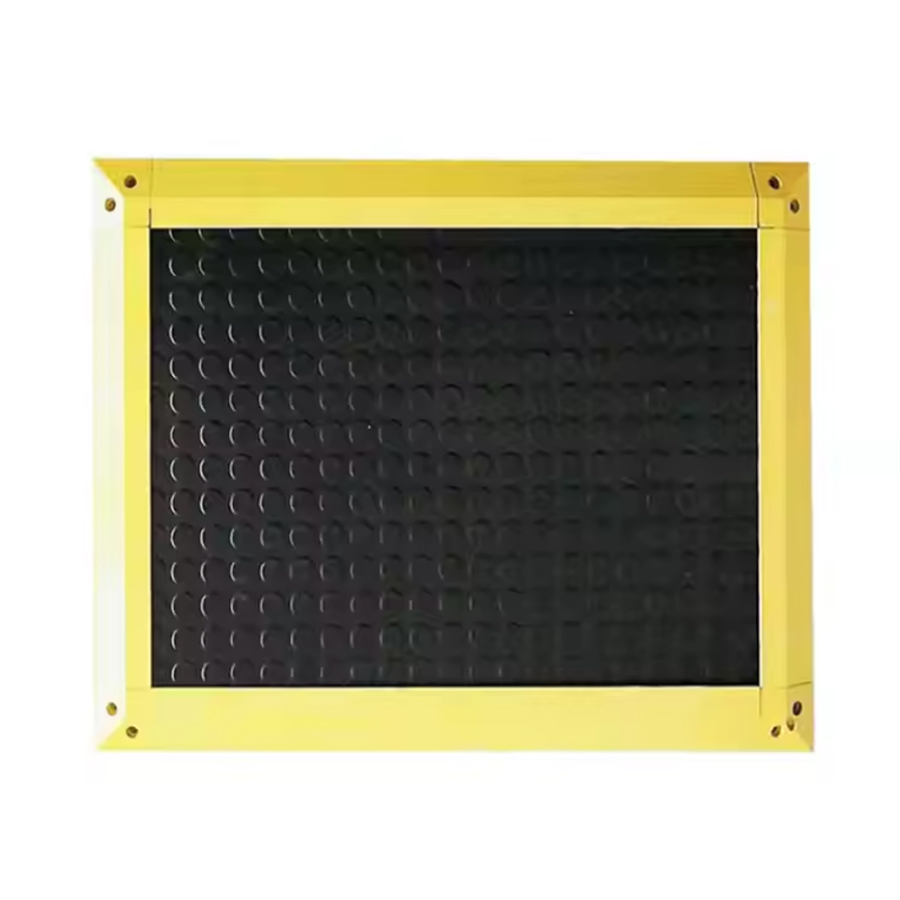

JT14 Industrial Safety Carpet Sensor — top view, coin anti-slip pattern

The sensing-type safety mat has a high trigger sensitivity and can provide safety protection for people weighing more than 30 kilograms. The laying area of the safety mat is flexible — DAIDISIKE provides safety mats of different sizes and custom shapes according to user requirements. Different models can be selected for different working conditions and usage environments.

  • 6 catalogue standard sizes from 250 × 500 mm up to 1100 × 1800 mm, plus made-to-order sizes and free polygon shapes.
  • Actuating force: adult ≥ 30 kg.
  • NBR rubber surface + aluminum edge wrapping.
  • Response time ≤ 30 ms, passive four-wire N.O. circuit — use a compatible evaluation controller with its documented mat input mode.
  • IP65 protection.
  • Service life: 1,000,000 actuation cycles.

Compare the industrial safety mat system selection checklist before choosing a size. The factory four-wire mat guide illustrates a DA31 evaluation configuration; confirm the exact supplied controller, mode and wiring. A generic relay connection is not a validated safety circuit.

⬇ Download detailed information (PDF)
Share this pageEmailWhatsAppLinkedIn

Available Models (Catalogue Standard Sizes)

Model code is JT14-width*length in millimetres. Custom dimensions and free polygon shapes are available on request — please specify the safety mat size or provide a layout diagram of the protected area, and confirm the exact custom size range with the factory.

JT14-250*500JT14-500*500JT14-500*1000JT14-750*1000JT14-1000*1000JT14-1100*1800

Technical Parameters — JT14 Type

ParameterValue
Suitable detection rangeDetect the presence of operators and objects
Recommended applicationFloor-area presence detection around robot cells, press / forging stations and maintenance access areas
Ambient temperature−10 to +60 °C (factory technical table)
Safety carpet thickness14 mm (factory technical table; replaces the older transcription uncertainty)
Surface protection materialNBR rubber
Edge wrapping formAluminum edge wrapping
Applicable industriesGeneral light and heavy industrial applications where operators share floor space with hazardous machinery.
Ordering instructionsProvide safety mat size, or a diagram of the safety-protection area.

System Technical Standards

ParameterValue
Catalogue standard sizes250×500, 500×500, 500×1000, 750×1000, 1000×1000, 1100×1800 mm (width × length)
Custom sizesMade to order, including free polygon shapes — confirm the available size range with the factory
Factory load specificationDynamic 500 kg; static 700 kg. These catalogue figures do not by themselves approve trolley or vehicle wheel loads; confirm the contact area, movement and delivered mat specification for the application.
Surface materialNBR rubber with aluminum edge wrapping
Safety integration / documentationA PL d rating is not claimed for JT14. The manufacturer-supplied EMC certificate QCT-E230410602, dated May 10, 2023, lists JT14 under Directive 2014/30/EU and limits its findings to the tested samples and tests. Company ISO 9001:2015 and ISO 10012:2003 documentation concerns quality and measurement management systems, respectively. These documents do not establish PL d or ISO 13856-1 product certification. Use a compatible evaluation controller, obtain current model-specific documentation and validate the complete machine safety function.
Protection levelIP65
Ambient temperature−10 to +60 °C (factory technical table)
Thickness14 mm (factory technical table)
Actuation forceAdult ≥ 30 kg
Response time≤ 30 ms
Service life1,000,000 cycles
Output typePassive four-wire N.O. mat circuit — do not connect it directly to a power supply. The factory guide illustrates DA31 evaluation; match the exact mat input mode, wiring and fault monitoring.
Cable, weight, surface and chemical compatibilityFactory table: 3 m or 5 m cable, approximately 30 kg/m², non-slip surface in black, yellow or red. Confirm the ordered configuration. Chemical/solvent compatibility requires application-specific review.

Typical Applications

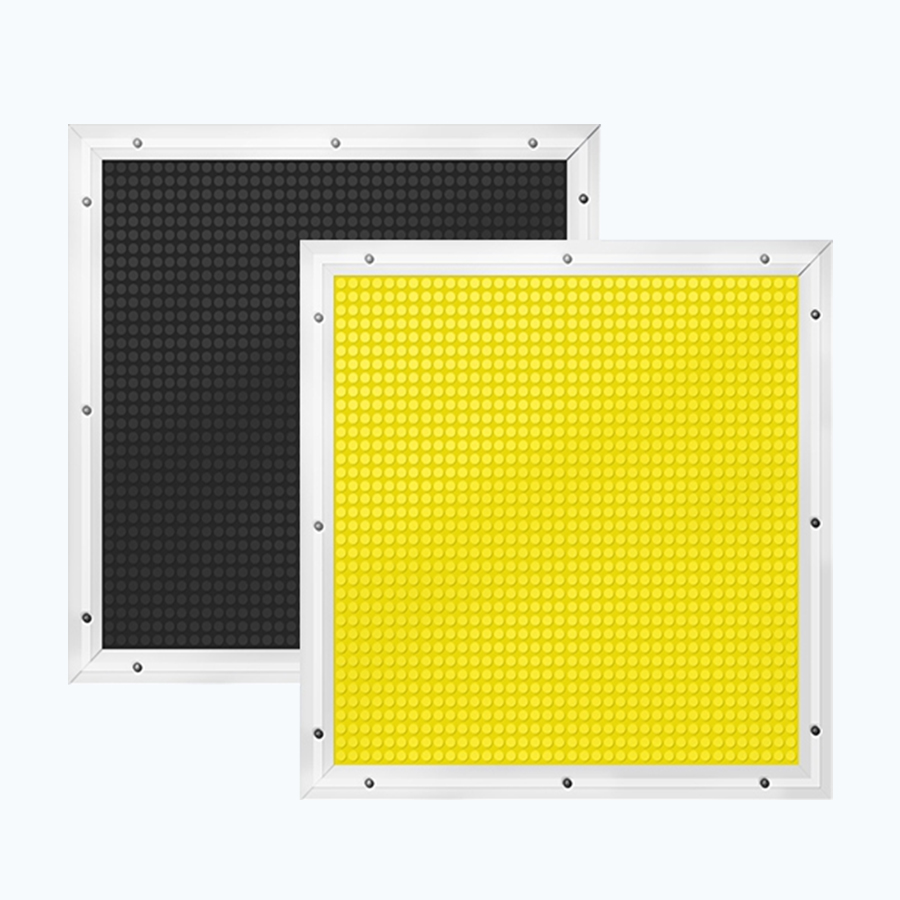

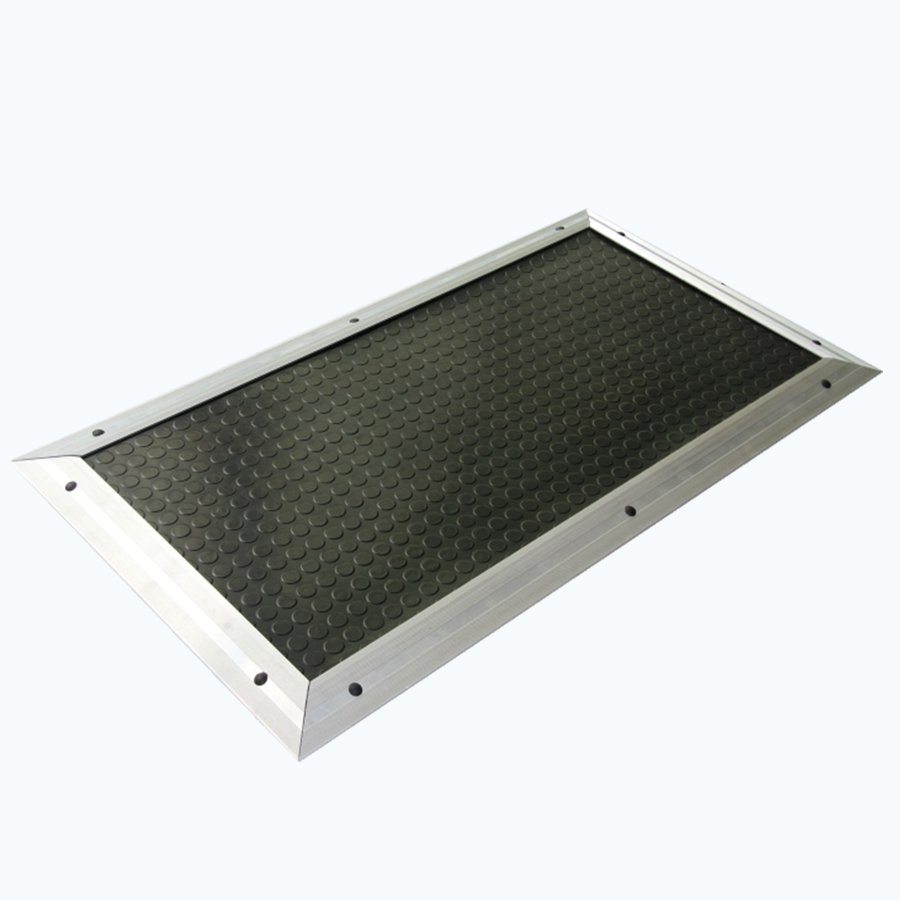

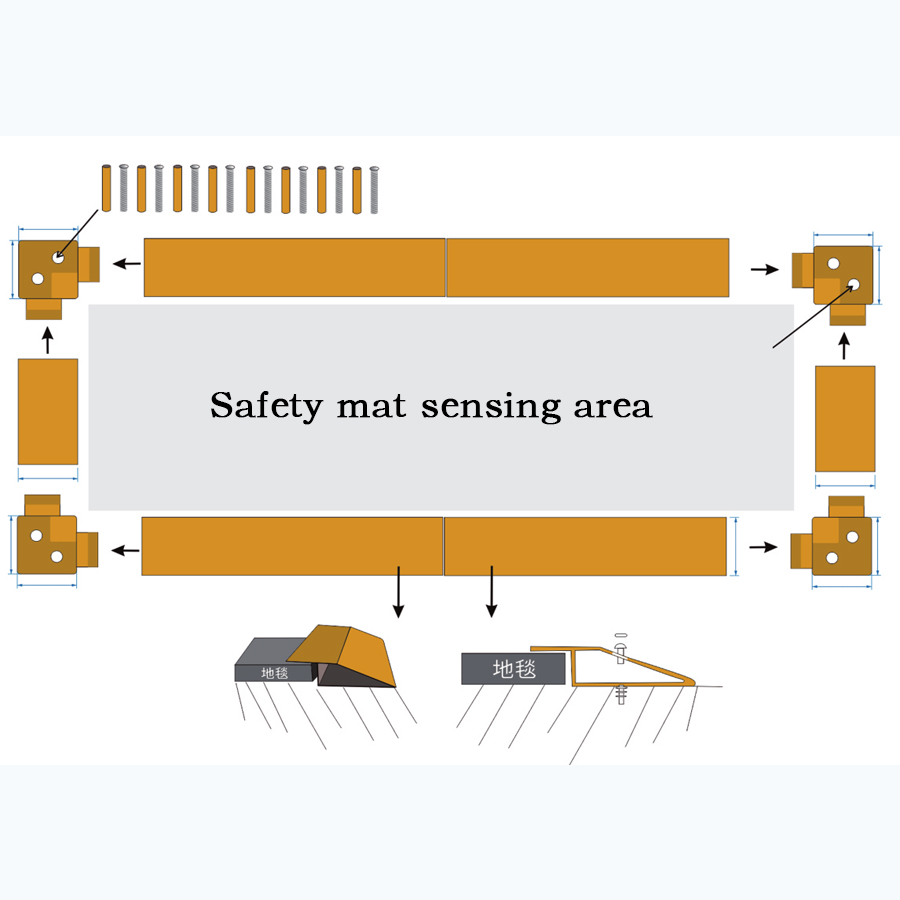

JT14 safety mat top viewJT14 safety mat edge wrappingJT14 safety mat on the production floorJT14 safety mat cable detailJT14 safety mat in a robotic cell

Frequently Asked Questions

How much weight does the JT14 safety mat need to trigger?

The JT14 pressure-sensitive safety mat actuates under an adult load of 30 kg or more, giving high trigger sensitivity for operator presence detection. The volt-free normally-open (N.O.) contact switches in ≤ 30 ms, so the connected safety relay receives the stop signal quickly; how fast the machine itself comes to rest depends on its own braking performance.

Is the JT14 safety mat a safety-rated device, and what standard does it follow?

On its own the mat is a passive pressure-sensing input — it must be wired to a compatible safety relay or safety controller that evaluates the signal. A PL d rating is not claimed for JT14. The manufacturer-supplied EMC certificate QCT-E230410602, dated May 10, 2023, lists JT14 under Directive 2014/30/EU and limits its findings to the tested samples and tests. Company ISO 9001:2015 and ISO 10012:2003 documentation concerns quality and measurement management systems, respectively. These documents do not establish PL d or ISO 13856-1 product certification. Use a compatible evaluation controller, obtain current model-specific documentation and validate the complete machine safety function.

What sizes are available and can the JT14 be made to a custom shape?

Six catalogue standard sizes are listed: 250×500, 500×500, 500×1000, 750×1000, 1000×1000 and 1100×1800 mm (width × length). Custom dimensions and free polygon shapes are made to order so the mat can follow a machine footprint without unguarded gaps — confirm the available custom size range with the factory. To order, supply the mat size or a layout diagram of the protected safe zone.

Where are pressure-sensitive safety mats like the JT14 used?

Safety mats safeguard floor areas around welding, palletizing and loading robot cells, in front of press and forging stations, and at maintenance access areas where personnel enter a hazardous zone. Because sensing is pressure-based rather than optical, a person who stands still is still detected, and dust or oil mist does not interfere.

How durable is the JT14 and how is it protected against the environment?

The factory technical table lists 1,000,000 actuation cycles, an NBR surface with aluminum edge wrapping, IP65 and an operating temperature of −10 to +60 °C. The confirmed load specification is dynamic 500 kg and static 700 kg. Confirm the contact area and load conditions before specifying trolley or vehicle traffic; these figures alone do not establish a wheel-load rating. Chemical compatibility requires the actual fluid and exposure conditions; an IP rating does not establish chemical resistance.

PDF Documents

Browse all downloads

Confirm the document and CAD file match your exact ordered version before installation or mechanical design. Contact us if your model is not listed.

Specs reviewed by Engineer Cai, Senior Application Engineer. See certificates.
