We specialize in high-quality inductive proximity switches, including D6.5 proximity switch, metal proximity switch, inductive proximity switch, and metal induction switch. The DAIDISIKE φD6.5 series uses advanced technology for industrial automation, ensuring reliable metal object detection. Products are CE and RoHS certified, safe and environmentally friendly.
The DAIDISIKE φD6.5 inductive proximity switch is a high-performance cylindrical inductive proximity sensor designed for DC three-wire systems. This sensor enables non-contact detection of metal objects, providing precise proximity sensing. Available in flush and non-flush mounting types, with a compact diameter of only 6.5mm, it is ideal for space-constrained environments.
Key Features:
DAIDISIKE is committed to providing reliable inductive proximity switch solutions to help customers improve production efficiency. If you're looking for a D6.5 proximity switch or metal proximity switch, contact us for more information.
Here are the basic parameters of the DAIDISIKE φD6.5 inductive proximity switch:
Type: Cylindrical inductive proximity sensor
Power Supply: DC three-wire (direct current)

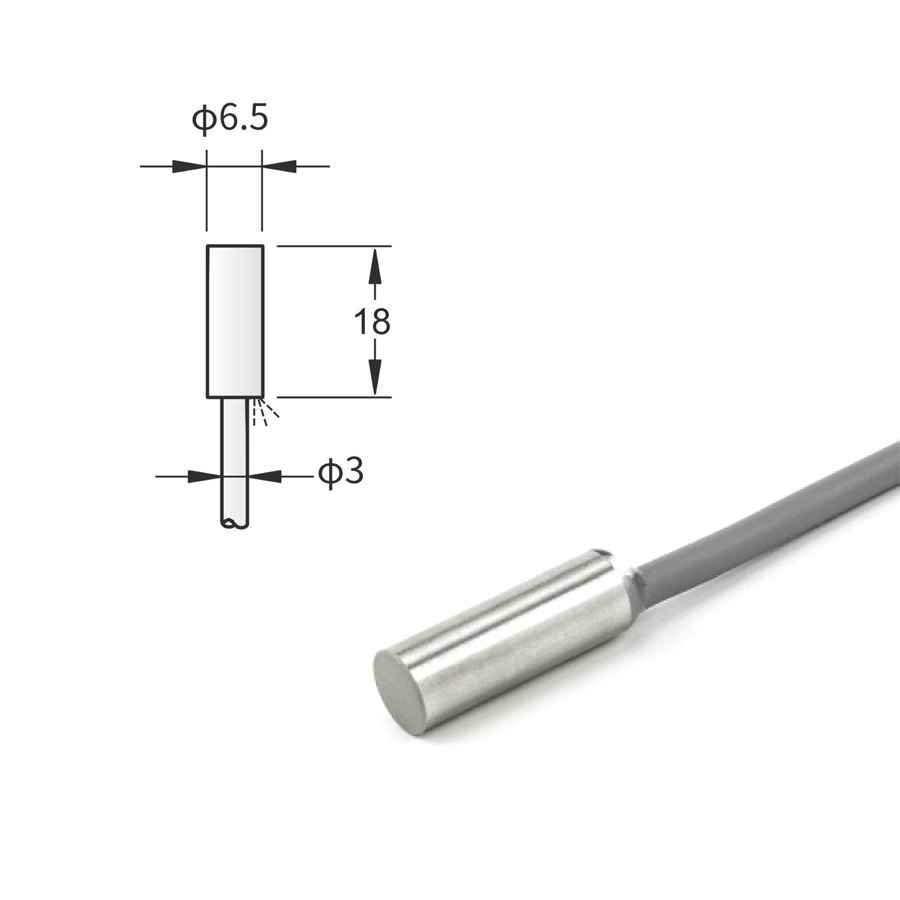

Diameter: Ø6.5mm
Detection Object: Metal objects
Operating Voltage: DC 10-30V (typical)
Output Type: NPN or PNP (optional)
Detection Distance: 1-2mm (depending on model)
Response Frequency: Up to 500Hz
Protection Rating: IP67 (waterproof and dustproof)
Operating Temperature: -25°C to +70°C
Certifications: CE, RoHS
Mounting Type: Flush or non-flush
These parameters ensure stable performance in various industrial scenarios. As a professional metal proximity switch and inductive proximity switch, the DAIDISIKE φD6.5 series is your ideal choice.
The following table lists the detailed specifications of all DAIDISIKE φD6.5 series product models for easy comparison and selection. It includes dimensions, mounting type, length, and other key information.
| Model | Mounting Type | Length (mm) | Detection Distance (mm) | Output Type | Certifications | Applicable Environment |
|---|---|---|---|---|---|---|
| DDSK-D6.5-30P | Flush | 30 | 1-2 | NPN/PNP | CE, RoHS | Industrial automation, machinery |
| DDSK-D6.5-35NP | Non-flush | 35 | 1-2 | NPN/PNP | CE, RoHS | Robotics, production line detection |
| DDSK-D6.5-45NP | Non-flush | 45 | 1-2 | NPN/PNP | CE, RoHS | Harsh environment metal sensing |
Note: The prefix DDSK represents the DAIDISIKE brand. All models are DC three-wire designs with customizable output types. Detection distance can be adjusted based on specific applications. For more D6.5 proximity switch specifications, please consult customer service.
The DAIDISIKE φD6.5 inductive proximity switch operates on the electromagnetic induction principle. When a metal object approaches the sensor's front end, it alters the inductance of the internal high-frequency oscillation circuit, causing a change in oscillation amplitude and triggering an output signal. This sensor requires no physical contact, avoiding wear and extending service life. As a metal induction switch, it is designed specifically for detecting conductive metals like iron, steel, and aluminum; non-metals do not trigger a response.
Step-by-Step Explanation:
Upon powering on, the sensor generates a high-frequency electromagnetic field internally.
A metal object enters the detection zone, disturbing the electromagnetic field.
The circuit detects the change and outputs a switching signal (high/low level).
The system receives the signal for automated control.
This non-contact design makes the product a reliable metal proximity switch and inductive proximity switch.
The DAIDISIKE φD6.5 proximity switch is suitable for various industrial application environments, including:
Automated Production Lines: Detecting part positions for precise assembly.
Machinery Equipment: Monitoring tool or workpiece proximity to prevent collisions.
Robotic Systems: Providing real-time feedback as a metal induction switch.
Packaging and Logistics: Counting and sorting metal objects.
Harsh Environments: Such as high-temperature, humid, or dusty factories, with IP67 protection ensuring stable operation.
The DAIDISIKE φD6.5 sensor has a rated sensing distance (Sn) of about 1–2 mm on a standard mild-steel target, available in flush and non-flush mounting. Non-ferrous metals such as aluminium, brass and stainless steel reduce the effective range by a known correction factor, so size the gap for the actual target material.
Both are offered. PNP (sourcing) is the default for most modern PLCs, especially in Europe, while NPN (sinking) is common in some Asian controls. This is a DC 3-wire sensor (power, ground, output) running on 10–30 V DC, so match the output type to your controller's input card to avoid wiring mistakes.
Flush (shielded, embeddable) sensors mount level with surrounding metal and resist side interference but have a slightly shorter range. Non-flush (unshielded) versions need a clear zone around the sensing face and give a more usable detection distance. The D6.5 30 mm model is flush; the 35 mm and 45 mm models are non-flush.
In most cases yes. It uses the same DC 3-wire NPN/PNP wiring, 10–30 V DC supply, IP67 rating and a comparable 1–2 mm sensing range, so it fits standard brackets and cabling. Match the Ø6.5 mm body, mounting type (flush or non-flush), barrel length and output to the unit you are replacing.
The DAIDISIKE φD6.5 proximity switch is rated IP67, making it waterproof and dustproof for washdown and dusty lines, with an operating temperature range of −25 °C to +70 °C. It is CE and RoHS compliant, suiting machine tools, conveyors, robotic cells and packaging equipment in humid, oily or vibrating conditions.
Specs reviewed by Engineer Cai, Senior Application Engineer. CE & RoHS compliant — see certificates.
