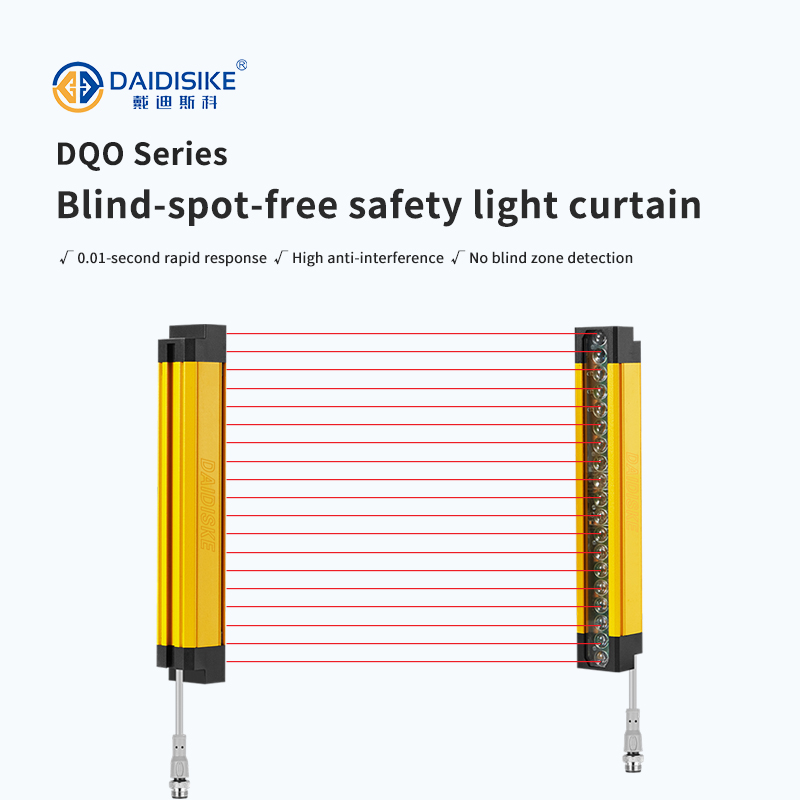

DQO Blind-Spot-Free Safety Light Curtain (ESPE)

A no-blind-zone safety light curtain for industrial automation. Compact 30×28 mm body with resolutions 10/20/30 mm and protective heights 90–2130 mm; standard detection distance 0.3–3 m (optional 0.3–6 m); response time ≤ 15 ms; ingress protection IP65. Transistor outputs with NPN/PNP and NO/NC selection (order suffix A/B/C/D), two 7-core cables. The first and last beams sit at the very ends of the housing, so there is no dead zone at the end caps.

View Detailed DQO Series
Dimensions & installation
Wiring examples (NPN/PNP)
Application scenarios
Watch on YouTube
Product Highlights
  • No blind zone window: end-beam design eliminates dead zones near caps, improving safety near the hazard.
  • Fast: response ≤15 ms, which shortens the ISO 13855 safety distance.
  • Solid-state output: transistor, NPN/PNP and NO/NC selectable by order suffix A/B/C/D; two 7-core cables.
  • Protective heights 90–2130 mm across 10 / 20 / 30 mm beam pitch, up to 72 beams.
  • Compact 30 × 28 mm body, protection IP65.
  • Flexible install: DQCA-01/02/03/05 accessories, with DQCA-05 supplied as standard for side fixing.

Specs summarized from the DQO manual; if differences exist, the datasheet and delivered certificates prevail.

Resolution & Application Guide
Resolution (K)Typical Application
10 mmFinger protection (assembly, fixtures, near point-of-operation)
20 mmPalm/hand protection (packaging, access openings)
30 mmArm/body presence (perimeter, aisles)

Protective height H = (n − 1) × K. Overall length L ≈ H + 13.5 mm (end allowance P+J≈6.75+6.75).

Technical Parameters (DQO Series)

CategoryItemTypical Value / OptionNotes
OpticalOperating principleThrough-beam infrared LED, modulatedEmitter/receiver pair; dead-zone-free window
Resolution (K)10 / 20 / 30 mmFinger / Hand / Arm-body
Protective height (H)H = (n−1) × K; 90–2130 mmn = number of beams; no dead zone at the end caps
Response time≤ 15 msVaries with beam count
Detection accuracyFollows beam pitch (finest 10 mm)See model list
Detection distance0.3–3 m (standard); 0.3–6 m (optional)Specify on order
Electrical / I/OOutputsTransistor, NPN/PNP signal selectionSuffix A = NPN NC, B = PNP NC, C = NPN NO, D = PNP NO
WiringTwo 7-core cablesEmitter and receiver
Supply voltageContact factoryNot published for the DQO series
IndicatorsPower / Run / BlockedBranch LEDs show beam status
Mechanical / EnvironmentBody section30 × 28 mmHousing material: contact factory
Overall lengthL ≈ H + 13.5 mmP+J ends ~6.75 mm each
Ingress protectionIP65Dust-tight, water-jet resistant
Operating temp.Contact factoryNot published for the DQO series
ComplianceStandardsThrough-beam AOPD designed with reference to IEC 61496; safety distance per ISO 13855No type class (Type 2/4) or performance level is published for this series — confirm with the factory
System integrationSafety relay / Safety PLCIndependent dual inputs; EDM support

DQO Series Detailed Specifications

Model format: DQOnn/K-H. Example: DQO12/10-110 (K=10, n=12, H=110). Output suffix A/B/C/D = PNP NO / PNP NC / NPN NO / NPN NC.

K (mm)Beams nProtective Height H (mm)Overall Length L (mm)Model ExampleRange
1012110123.5DQO12/10-1100.3–3 m
1014130143.5DQO14/10-1300.3–3 m
1016150163.5DQO16/10-1500.3–3 m
1018170183.5DQO18/10-1700.3–3 m
1020190203.5DQO20/10-1900.3–3 m
1022210223.5DQO22/10-2100.3–3 m
1024230243.5DQO24/10-2300.3–3 m
1026250263.5DQO26/10-2500.3–3 m
1028270283.5DQO28/10-2700.3–3 m
1030290303.5DQO30/10-2900.3–3 m
1032310323.5DQO32/10-3100.3–3 m
1034330343.5DQO34/10-3300.3–3 m
1036350363.5DQO36/10-3500.3–3 m
1038370383.5DQO38/10-3700.3–3 m
1040390403.5DQO40/10-3900.3–3 m
1042410423.5DQO42/10-4100.3–3 m
1044430443.5DQO44/10-4300.3–3 m
1046450463.5DQO46/10-4500.3–3 m
1048470483.5DQO48/10-4700.3–3 m
1050490503.5DQO50/10-4900.3–3 m
1052510523.5DQO52/10-5100.3–3 m
1054530543.5DQO54/10-5300.3–3 m
1056550563.5DQO56/10-5500.3–3 m
1058570583.5DQO58/10-5700.3–3 m
1060590603.5DQO60/10-5900.3–3 m
1062610623.5DQO62/10-6100.3–3 m
1064630643.5DQO64/10-6300.3–3 m
1066650663.5DQO66/10-6500.3–3 m
1068670683.5DQO68/10-6700.3–3 m
1070690703.5DQO70/10-6900.3–3 m

For 0.3–6 m builds, specify on order. Keep the model format DQOnn/K-H. Add A/B/C/D for output type (PNP NO / PNP NC / NPN NO / NPN NC).

Typical Applications

  • Presses / press brakes / shears: 10–20 mm for finger/hand protection; shorter safety distance with fast stop.
  • Assembly fixtures & robotics periphery: high resolution with interlocked safety loop and EDM.
  • Packaging / logistics: 30 mm for aisle and perimeter guarding.

Safety distance reference (ISO 13855): S = K × T + C, where T is machine stopping time.

Installation Method

Mounting options: side-mount (default), end-mount, tubular mount. Use M12 aviation plugs; align emitter/receiver and verify blind-spot-free window alignment with the hazard.

Resolution map: 10 mm (finger), 20 mm (hand), 30 mm (arm/body). Protective height equals the sensing window from the top beam to the bottom beam.

Working Principle

DQO forms a synchronized array of infrared beams between the emitter and receiver. When any beam is interrupted, the internal safety logic switches OSSD outputs to OFF, and the connected safety relay/PLC removes motive power. The blind-spot-free window ensures coverage up to the end caps.

  1. Emission & reception: modulated IR LED; receiver filters spurious light.
  2. Beam sequencing: emitter and receiver stay in step so each beam is evaluated in turn.
  3. Self-test & EDM: continuous diagnostics; monitors external devices.
  4. Recovery: restart interlock per risk assessment.

Frequently Asked Questions

What safety type / performance level does the DQO carry?

The DQO is a through-beam opto-electronic protective device (AOPD) — a product category designed with reference to IEC 61496 and to the machinery-safety standards ISO 13849 / ISO 13855. DAIDISIKE has not published a type classification (Type 2 / Type 4) or a performance level for the DQO series, so none is claimed here; request the current test documentation from the factory before specifying the DQO into a rated safety function. Where a documented Type 4 / PL e / SIL 3 device is required, use the DQT4 series. The final PL or SIL of the complete safety function is validated by the integrator in any case, including stopping time and ISO 13855 safety distance.

Which resolution should I choose for finger protection?

Use the 10 mm resolution for finger protection at the point of operation, 20 mm for palm or hand detection on packaging and access openings, and 30 mm for arm and body presence on perimeters and aisles. Protective height H = (n − 1) × K, where n is the beam count and K is the resolution.

How do I wire the outputs in NPN or PNP?

The DQO uses transistor outputs ordered by model suffix: A = NPN NC, B = PNP NC, C = NPN NO, D = PNP NO. Wiring is by two 7-core cables. Connect both channels to independent inputs on a safety relay or safety PLC, and use the EDM (external device monitoring) feedback loop to confirm the contactors drop out before each restart.

Can the DQO replace an Omron, SICK deTec or Keyence light curtain?

In many cases yes, mechanically. The DQO offers 10/20/30 mm resolutions, a 0.3–3 m detection distance (0.3–6 m optional), ≤15 ms response, IP65 and NPN/PNP transistor outputs, so it can serve as a quality equivalent. Match the resolution, protective height and output type to the unit being replaced and re-verify the ISO 13855 safety distance. Where the original carried a certified Type/PL rating, confirm the equivalent documentation with the factory.

What is the detection distance and what does blind-spot-free mean?

Standard detection distance is 0.3–3 m, with a 0.3–6 m version specified on order. Blind-spot-free refers to the first and last beam sitting at the very ends of the housing, so there is no dead zone at the end caps — the full protective height H = (n − 1) × K is usable right up to the mounting surface. Ingress protection is IP65, dust-tight and resistant to water jets. Body section is 30 × 28 mm.

PDF & 3D CAD Downloads

Browse all downloads
3D CAD MODELS

Find the file for your exact model

Open the download center with the named series selected. Search your full model, check the file details and download the matching STEP file.

Find DQO CAD Models

Confirm the document and CAD file match your exact ordered version before installation or mechanical design. Contact us if your model is not listed.

Specs reviewed by Engineer Cai, Senior Application Engineer.See certificates.
